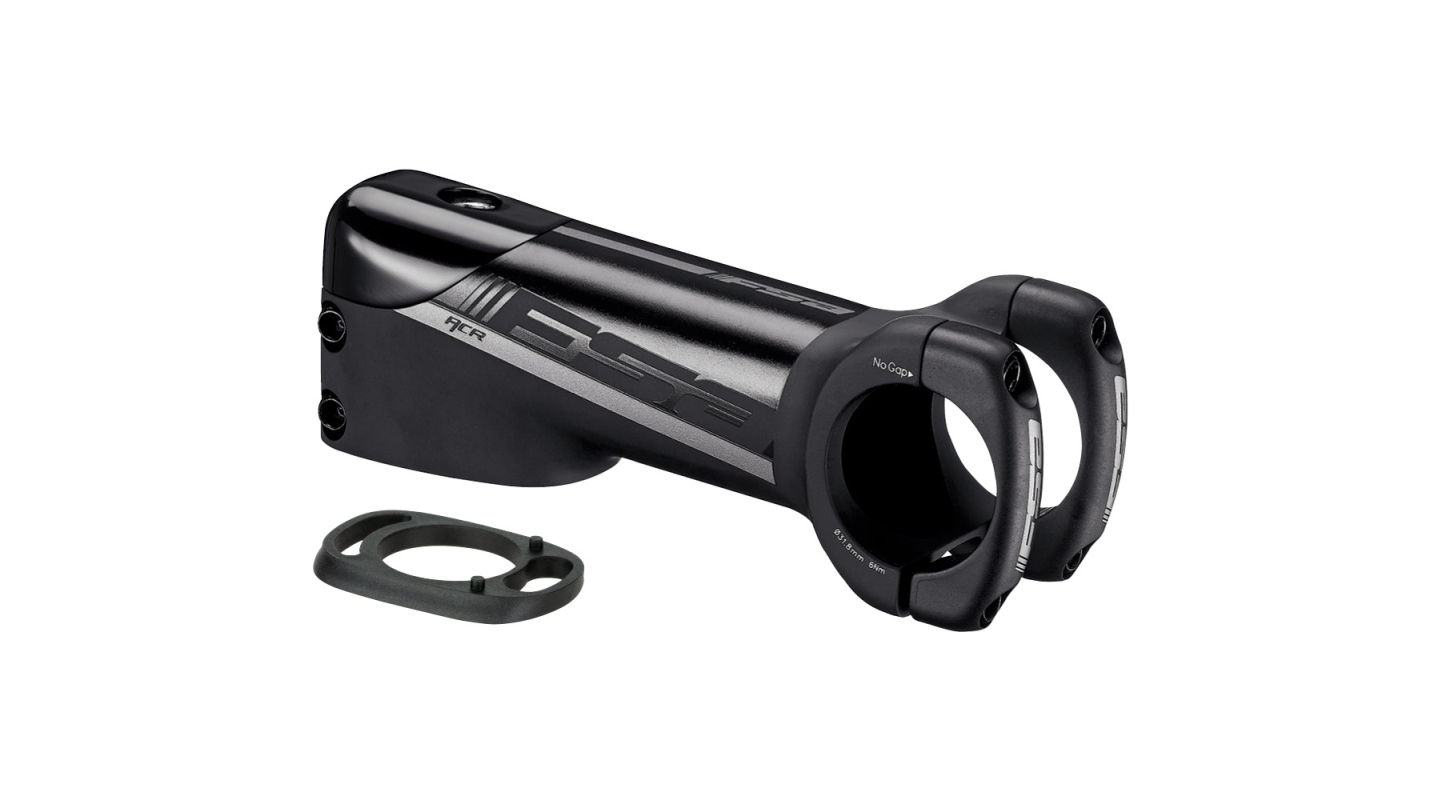

NS ACR STEM

• Aerodynamic Cable Routing (ACR)
• Low profile frontal area
• No rotation limit
• Body and faceplate – 6061 T6
• Chromoly hardware
• Specific ACR frame and headset required

SIZES

• -6° x L70, 80, 90, 100, 110, 120, 130, 140mm
• Ø31.8mm handlebar clamp diameter
• 30mm fork clamp stack height

FINISH

• Bead blasted anodized black

WEIGHT

• 235 grams (100mm)

STEMS

CODE	LENGHT	ANGLE	CLAMP	HEADSET
175-0034015030	70 mm	-6°	31.8 mm	1.1/8
175-0034016030	80 mm	-6°	31.8 mm	1.1/8
175-0034017030	90 mm	-6°	31.8 mm	1.1/8
175-0034018030	100 mm	-6°	31.8 mm	1.1/8
175-0034019030	110 mm	-6°	31.8 mm	1.1/8
175-0034020030	120 mm	-6°	31.8 mm	1.1/8
175-0034021030	130 mm	-6°	31.8 mm	1.1/8
175-0034022030	140 mm	-6°	31.8 mm	1.1/8

SPARES

CODE	DESCRIPTION	金額
670-0259000110	STSP SPACER KIT ACR 1x5mm+2x10mm MW010/011	5,830円（税込）
67000260000110	STSP ACR Spacer 10mm w/o logo MW011	1,980円（税込）
67000263000110	STSP ACR Spacer 5mm w/o logo MW010	1,650円（税込）
670-0264000110	STSP ROAD NS ACR Base Stem Spacer MW672	1,430円（税込）
