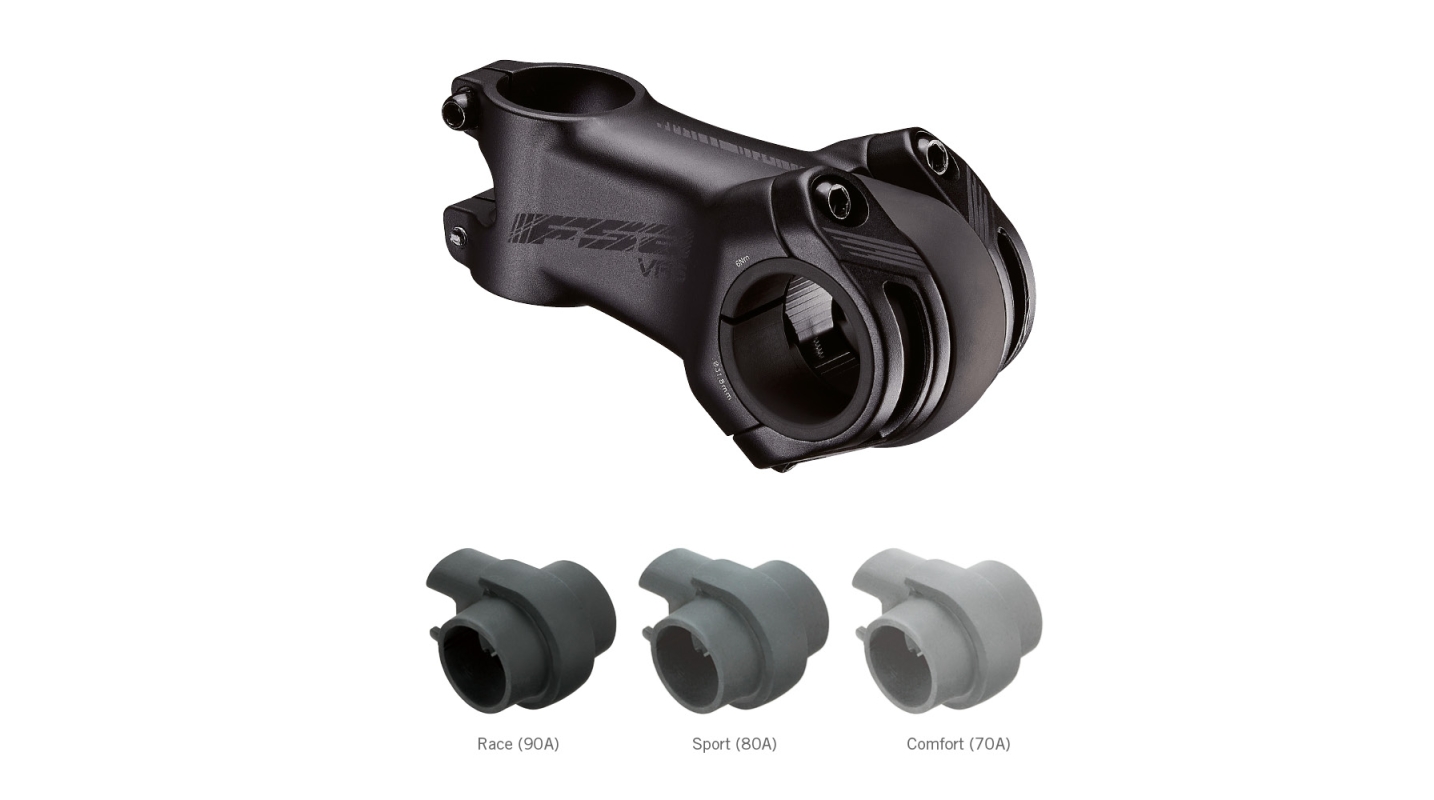

VAS AGX STEM

• Vibration Absorbing Stem for dirt applications, modular mounts.
• Polyurethane bushing, 360°HB isolation with keyed clamp interface
• Made with vibration damping material. Up to 47% vibration absorbed compared to standard stem.

BUSHING

• 3 Color bushing options (included)
• Light Grey (70A) Comfort
• Dark Grey (80A) Sport
• Dark Black (90A) Race

SIZES

• L80, 90, 100mm
• Ø31.8mm handlebar clamp diameter

FINISH

• Bead blasted anodized black
• Laser graphics

WEIGHT

• 293 grams (100mm)

WARNING

• Do not install VAS Stem on handlebars with holes for cable routing in the central clamping region, handlebar damage or breakage can result.

• Check VAS Stem elastomer and bushing regularly, if there is damage or significant wear replace with new parts.

CODE	LENGHT	ANGLE	CLAMP	HEADSET
175-0075016870	80 mm	-6°	31.8 mm	1.1/8
175-0075017870	90 mm	-6°	31.8 mm	1.1/8
175-0075018870	100 mm	-6°	31.8 mm	1.1/8
