SL-K -6° SCR STEM

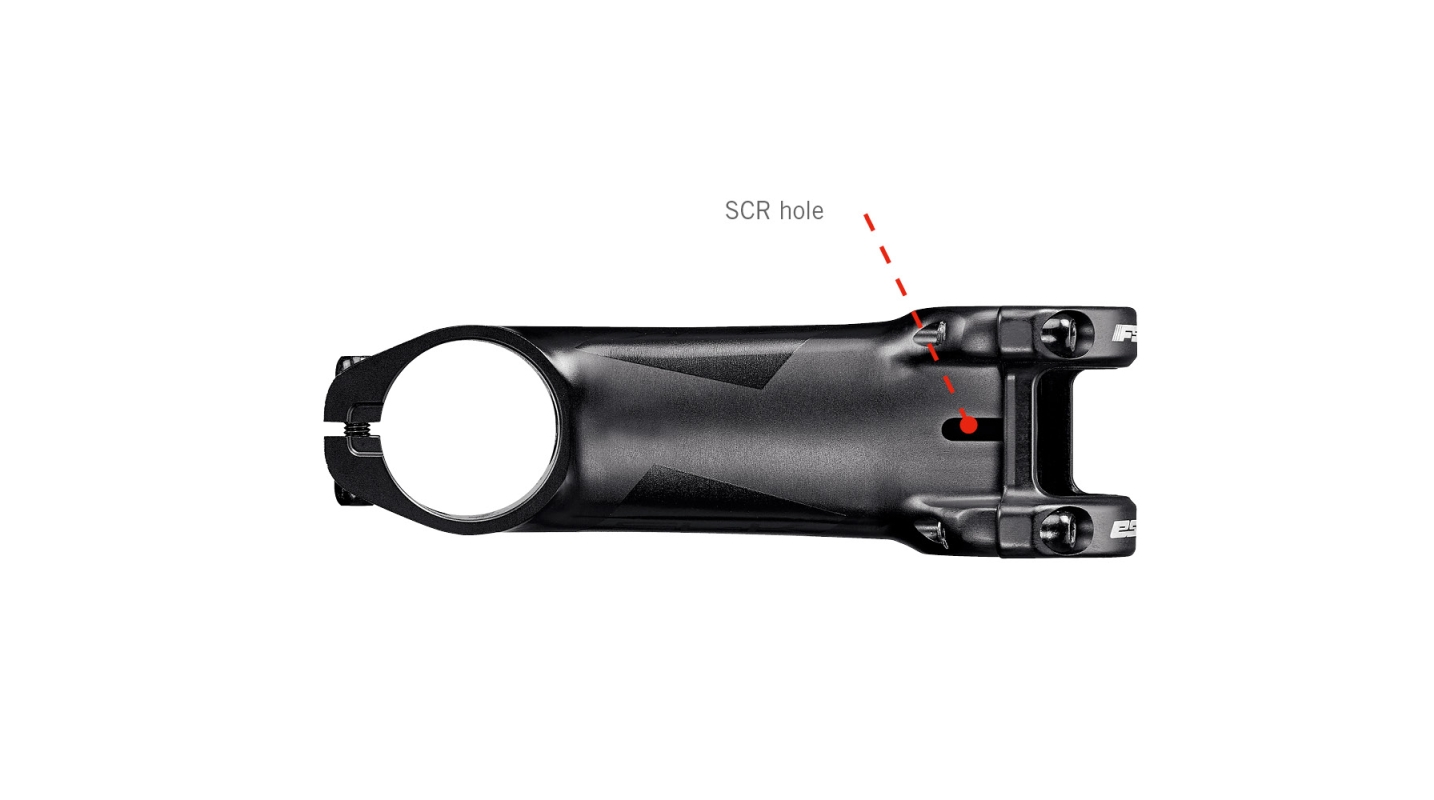

• Semi integrated Cable Routing (SCR)
• 3D Forged and CNC machine AL2014
• Chromoly hardware

SIZES

• -6º x L70, 80, 90, 100, 110, 120, 130, 140mm
• Ø31.8mm handlebar clamp diameter
• 40mm fork clamp stack height
• Shim to adapt 1-1/4” stem to 1-1/8” steer tube (included)
• Includes matching top cap

FINISH

• Anodized black
• Color graphics – black

WEIGHT

• 159 grams (100mm)

CODE	LENGHT	ANGLE	CLAMP	HEADSET
175-0032005010	70 mm	-6°	31.8 mm	1.1/4 (1.1/8)*
175-0032007010	80 mm	-6°	31.8 mm	1.1/4 (1.1/8)*
175-0032008010	90 mm	-6°	31.8 mm	1.1/4 (1.1/8)*
175-0032009010	100 mm	-6°	31.8 mm	1.1/4 (1.1/8)*
175-0032010010	110 mm	-6°	31.8 mm	1.1/4 (1.1/8)*
175-0032011010	120 mm	-6°	31.8 mm	1.1/4 (1.1/8)*
175-0032012010	130 mm	-6°	31.8 mm	1.1/4 (1.1/8)*
175-0032013010	140 mm	-6°	31.8 mm	1.1/4 (1.1/8)*

*1-1/4” stem to 1-1/8 adapter included
