Frog 53

税込価格¥109,450

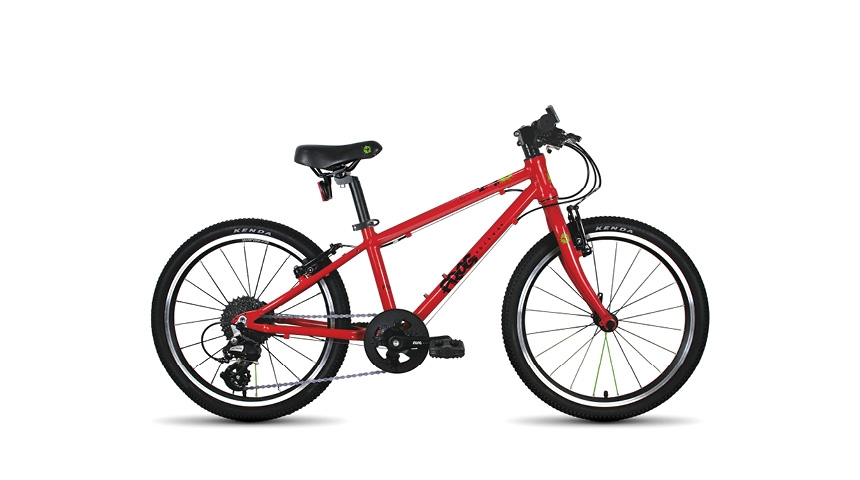

  • レッド

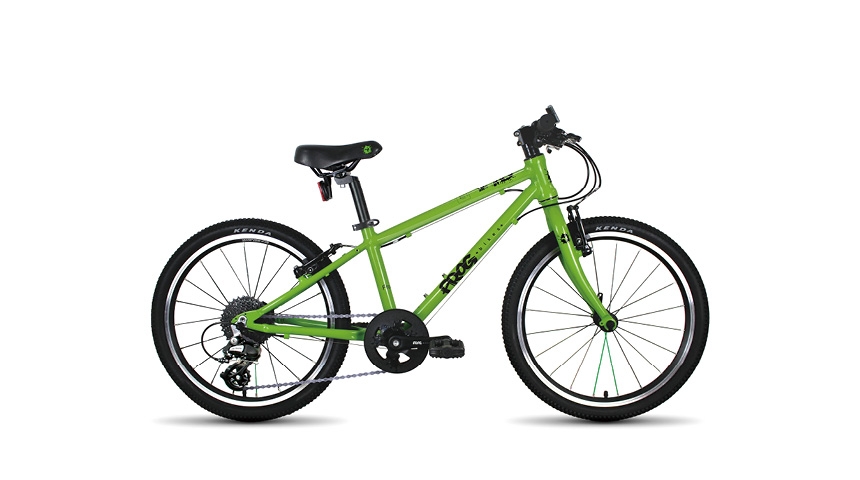

  • グリーン

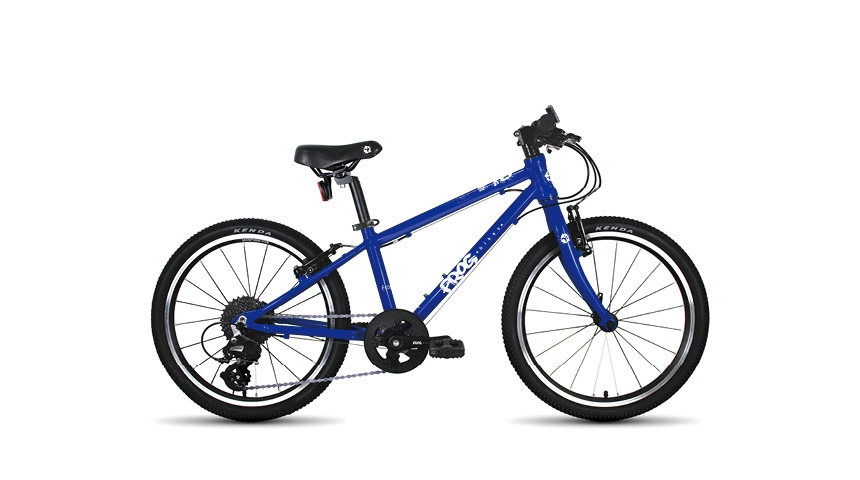

  • エレクトリックブルー

  • ピンク

20-inch kids’ hybrid bike

技術仕様

Product Safety Certifications  ISO 4210 and CPSC 1512 (CFR 1512)
Bike Weight  8.15kg (incl pedals)
Frame  6061 T6 heat treated Aluminum alloy, seat tube 11″ (280mm)
Fork  6061 T6 heat treated aluminium alloy
Front Hub  Quando, Aluminum, sealed hub, Quick Release, 20 hole
Rear Hub  Quando, Aluminum, sealed hub, Quick Release, 20 hole, Shimano type 8/9spd free hub body
Cassette free wheel  8-speed, 11-32t
Rim  Aluminium, 20″, double wall, machined braking surface
Seat Clamp  Aluminium, Quick Release
Headset  Neco, 1″1/8 semi-integrated threadless, Frog Bikes top cap
Stem  Aluminium, 1″1/8, 38mm, 4 bolt clamp
Grips/Bar Tape  Frog Bikes specific, lock on, slim grips
Brakes (F&R)  Tektro 836AL, Aluminum, linear pull
Tyres  Kenda K1047, 20″x1.5″, Hybrid, (ETRTO/ISO 38-406)
Mudguards  Full length, resin, black
Accessories Included  Bell, bike reflectors white/red, wheel reflectors orange/white, paint plasters, frame protector patches
Crankset/Chainring  Frog Bikes Patented,114mm, Aluminum straight arm cranks, 32T chainring, black
Bottom Bracket  Thun Shorty-ML-SL; square taper, 68/108/107.5
Pedals  Frog Bikes, eco-friendly rice husk & plastic composite, with reflectors, 9/16″
Chain  KMC, 8-speed
Handlebar  Aluminium, flat bar, 460mm
Brake Levers  Tektro JL510, aluminium, easy reach
Saddle  Frog Bikes child-specific saddle (small), steel rails
Seat Post  Aluminium, micro adjust, 27.2mm
Gear Shifter  FrogFitTechnology®️ youth-specific 8-speed with short lever travel and ultraslick gear cable
Rear Derailleur  Shimano Altus, M310, 8-speed

Geometry

A – Wheelbase (mm)  848
B – Seat Tube Angle (°)  74
C – Head Tube Angle (°)  74
D – Effective Top Tube (mm)  440
E – Head Tube Length (mm)  100
F – Chain Stay Length (mm)  361
G – Seat Tube Length (mm)  280
H – Bottom Bracket to Floor (mm)  216
